BAROCCO Smart Central Ventilation

Product Category: BAROCCO & iClaire series

Product number:

BAROCCO-500S-G1 BAROCCO-350S-G1

BAROCCO Series Operating principle and Function: ● Bidirectional flow without Full heat exchange ● With plasma sterilization module ● One-time filtration efficiency ≥99.97% ● 2 hour efficiency of sterillzing odor removal ≥99.99% ● CCM Cumulate Clean Mass(mg) ＞1,2000

商城购买

重量

Quantità

库存

隐藏域元素占位

Keywords:

Environmental electrical appliances

DESCRIPTION
Product parameters
FAQ

When the fresh air system is working, if the temperature difference between indoor and outdoor is too large, the air conditioningload will increase sharply, and the high effciency of the full heat exchange core can achieve effcient energy recoveryand assist the air conditioning to save energy.

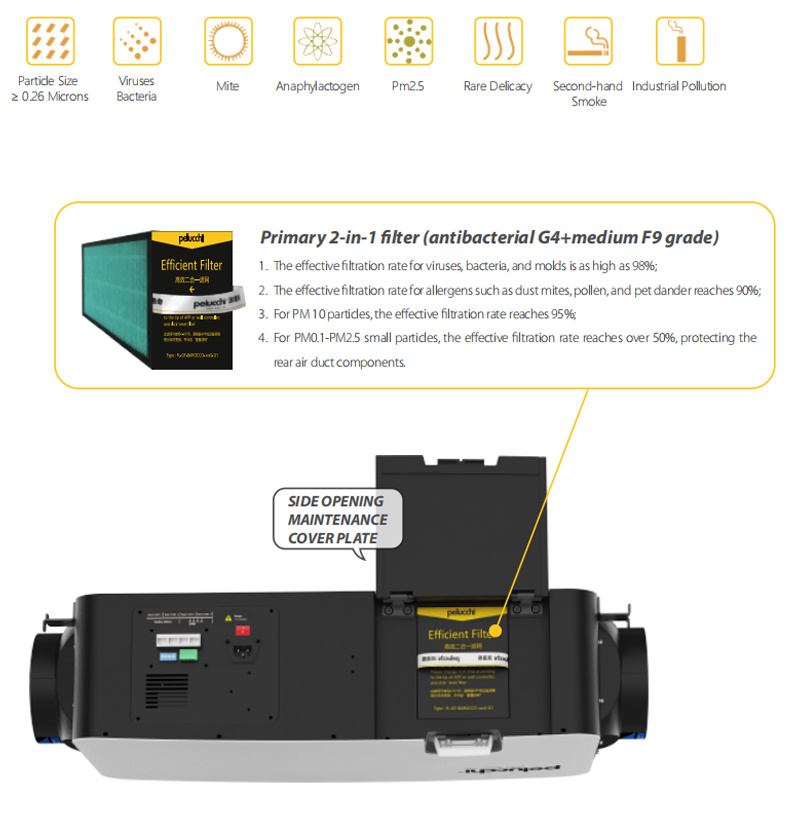

FILTER TECHNOLOGY

● Three stage fltration technology, using HEPA flter paper imported from Berry, France, and static electricity technology, not only flters PM2.5, but also the most diffcult to flter PM0.3, with a one-time fltration effciency still greater than 99.97%.
● The patented diagonal pull flter has a larger fltering area and is ergonomically convenient for extraction.
● The service life of the flter is CCM, far exceeding the nationa nighest standard P4 level.
● F9 level medium effciencyflter ensures efhcient operation of the total heat exchanger.
● The developed area is greater than 6 square meters.
● Long term antibacterial technology with primary flter.

PLASMA

STERILIZATION AND DISINFECTION TECHNOLOGY

The patented ion sterilization and disinfection technolo-gy alternately generates tens of millions of non equilibri-um positive and negative ions per second, colliding with pollutants in the air and rapidly decomposing into Co2 and H20.
- SPl non equilibrium positive and negative plasma meets and attracts planktonic bacteria and viruses in the air, causing electrolyte in the cell membrane Generate a potential difference, form a weak current, change its DNA replication ability, and thus produce a sterilization and disinfection effect,
- Medical grade sterilization effect: Staphylococcus aureus. Staphylococcus aureus, Escherichia coli, Aspergillus niger natural air bacteria, with a sterilization effect of over 99% within 60 minutes, and a virus removal rate (COVlD-19) of>99.99%.
TEST DATA

When SPl non equilibrium positive and negative plasma in a weakly oxidized state encounters and collides with odor molecules and odor molecules, the transport capacity of these molecules can accelerate their decomposition and oxidation, thereby purifying the odor and odor in the space. This can signifcantly reduce people's perception of odor, including durian, toilet odor, shoe odor, and decoration odor

INTELLIGENT CONTROL

MASTER CONTROL SYSTEM
APP CONTROL
- APP Remote Control
- Year, month, and day reports with comprehensive data
- Home Weather Information Service
- Big Data Calculates Filter Life
- Sharing Control Functions
- WeChat shares data browsing
- Controlling the Scene Link
- Large-screen display, batch control
- Filters are easy to buy
Wall Control Switches
- It adopts TFT mobile phone color screen, exquisite display.
- Supports standard mounting of Type 86 wallboxes.
- APP remote control, email-level encryption technology, three-level management authority for secure data connection.
- It is convenient to wear pipes and wiring, wall and host control switch, only 1 standard network cable is needed to overcome the traditional button design, and 6 buttons are easy to operate.
- It is convenient to wear pipes and wiring, wall and host control switch, only 1 standard network cable is needed to overcome the traditional button design, and 6 buttons are easy to operate.
- Four-speed variable frequency speed adjustment, independent control of two fan speed adjustment
- Auto Mode, Night Mode, Sterilization Mode, Mobile Phone Mode, One-Key Quick Switching.
- Precision body design, the thickest part is only 19.3mm after installation.
- Automatic network calibration of the watch.
- Duration of the second-level filter.
- Power management system, real-time control of power consumption.
- Multi-point layout sensor within the host for precise anti-condensation control.

Model	BAROCCO-500-G1 (Bidirectional flow with full heat exchanger)	BAROCCO-350-G1 (Bidirectional flow with full heat exchanger)	BAROCCO-500DN-G1 (Bidirectional flow without heat exchanger)	BAROCCO-350DN-G1 (Bidirectional flow withoout heat exchanger)	BAROCCO-500S-G1 (Unidirectional flow without heat exchanger)	BAROCCO-350S-G1 (Unidirectional flow without heat exchanger)
Size LWD(mm)	1170 × 600 × 240	1170 × 600 × 240	700 × 480 × 200	700 × 480 × 200	700 × 350 × 200	700 × 350 × 200
Box size LWD(mm)	1210 × 660 × 300	1210 × 660 × 300	740 × 540 × 260	740 × 540 × 260	740 × 410 × 260	740 × 410 × 260
Gross Weight(kg)	51	51	26	26	22.6	22.6
Net Weight (kg)	42	41	16	16	12.6	12.6
Power supply(V-Hz)	220V~240V AC 50Hz/60Hz	220V~240V AC 50Hz/60Hz	220V~240V AC 50Hz/60Hz	220V~240V AC 50Hz/60Hz	220V~240V AC 50Hz/60Hz	220V~240V AC 50Hz/60Hz
Color	White top & Black body	White top & Black body	White top & Black body	White top & Black body	White top & Black body	White top & Black body
Pipe size(mm)	Φ160(IN) Φ110(OUT)	Φ160(IN) Φ110(OUT)	Φ150(IN) Φ150(OUT)	Φ150(IN) Φ150(OUT)	Φ160(IN) Φ160(OUT)	Φ160(IN) Φ160(OUT)
Housing material	1.2mm cold-rolled steel plate	1.2mm cold-rolled steel plate	1.2mm cold-rolled steel plate	1.2mm cold-rolled steel plate	1.2mm cold-rolled steel plate	1.2mm cold-rolled steel plate
Rated power	695	660	695	660	620	615
Auxiliary thermal PTC power(W)	500	500	500	500	500	500
Inlet volume (m³/h)	500	350	500	350	500	350
Cpapacoty/Room Size (m²) Room height = 2.8m Air Exchange 0.5-1 times/hour	150-250	120-200	150-250	120-200	150-250	120-200
Suitable for QTY of people	12	8	12	8	12	8
Maximum Outlet Static Pressure (Pa)	750	430	750	430	750	430
Main fan	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor
Return air fan	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	ON	ON
PM2.5 sensor	Climbing laser	Climbing laser	Climbing laser	Climbing laser	Climbing laser	Climbing laser
CO2 sensor	Sweden SenseAir	Sweden SenseAir	Sweden SenseAir	Sweden SenseAir	Sweden SenseAir	Sweden SenseAir
Temperature and humidity sensors	Sensirion, Switzerland	Sensirion, Switzerland	Sensirion, Switzerland	Sensirion, Switzerland	Sensirion, Switzerland	Sensirion, Switzerland
Mounting form	Ceiling	Ceiling	Ceiling	Ceiling	Ceiling	Ceiling
Air Flow	Inlet & Outlet	Inlet & Outlet	Inlet & Outlet	Inlet & Outlet	Inlet	Inlet
One-time Filtration efficiency	≥99.97%	≥99.97%	≥99.97%	≥99.97%	≥99.97%	≥99.97%
Maximum noise level (sound pressure level) dB(A)	49	43	47	41	46	40
Minimum Noise Level (sound pressure level) dB(A)	25	25	25	25	25	25
CCM Cumulate Clean Mass(mg)	>12000	>12000	>12000	>12000	>12000	>12000
HMI	86 standard installtation (up to 4 supported) / APP control	86 standard installtation (up to 4 supported) / APP control	86 standard installtation (up to 4 supported) / APP control	86 standard installtation (up to 4 supported) / APP control	86 standard installtation (up to 4 supported) / APP control	86 standard installtation (up to 4 supported) / APP control
Modbus building remote control	Y	Y	Y	Y	Y	Y
Wall control switches	TFT color screen	TFT color screen	TFT color screen	TFT color screen	TFT color screen	TFT color screen
2 hour efficiency of sterilizing odor removal	>99.99%	>99.99%	>99.99%	>99.99%	>99.99%	>99.99%
Full heat exchange	Y	Y	N	N	N	N
Heat Exchange Temperature Efficiency Winter Condition (MAX)	70%	77%	NA	NA	NA	NA
Warranty Period	1 year for the whole machine (8 years for the motor)	1 year for the whole machine (8 years for the motor)	1 year for the whole machine (8 years for the motor)	1 year for the whole machine (8 years for the motor)	1 year for the whole machine (8 years for the motor)	1 year for the whole machine (8 years for the motor)
Origin	China	China	China	China	China	China
