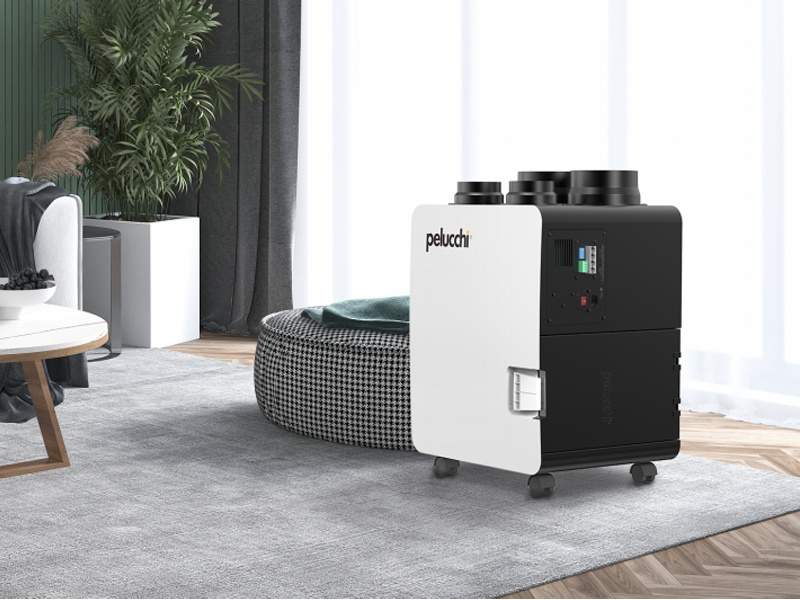

BAROCCO Smart Movable Ventilation

Product Category: BAROCCO & iClaire series

Product number:

BAROCCO-350GDN-G1

BAROCCO Series Operating principle and Function: ● Bidirectional flow without Full heat exchange ● With plasma sterilization module ● One-time filtration efficiency ≥99.97% ● 2 hour efficiency of sterillzing odor removal ≥99.99% ● CCM Cumulate Clean Mass(mg) ＞1,2000

商城购买

重量

Quantità

库存

隐藏域元素占位

Keywords:

Environmental electrical appliances

DESCRIPTION
Product parameters
FAQ

When the fresh air system is working, if the temperature difference between indoor and outdoor is too large, the air conditioningload will increase sharply, and the high effciency of the full heat exchange core can achieve effcient energy recoveryand assist the air conditioning to save energy.

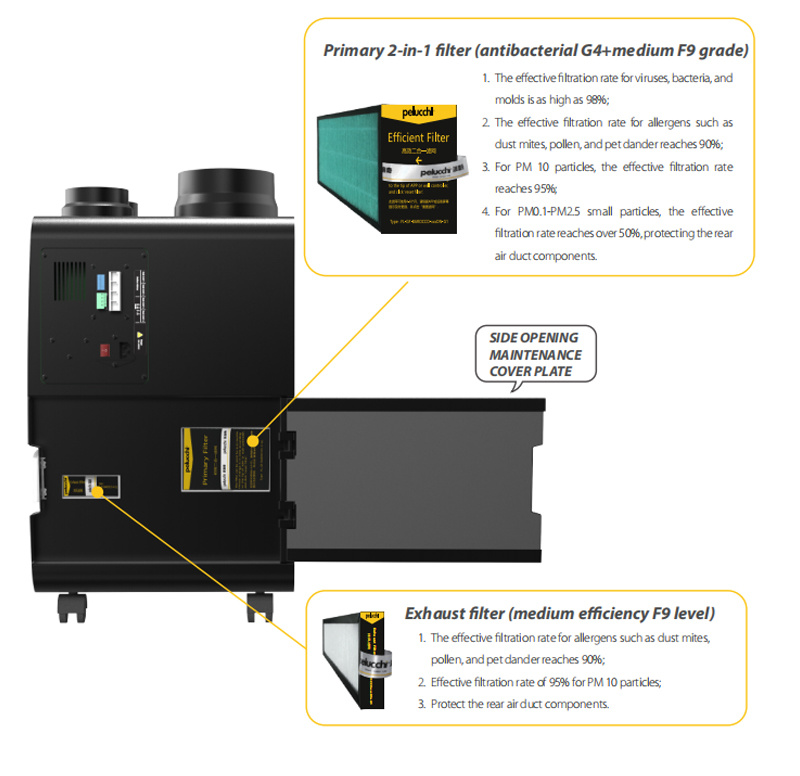

FILTER TECHNOLOGY

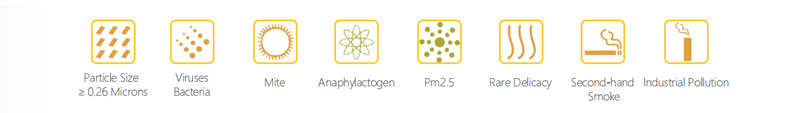

● Three stage fltration technology, using HEPA flter paper imported from Berry, France, and static electricity technology, not only flters PM2.5, but also the most diffcult to flter PM0.3, with a one-time fltration effciency still greater than 99.97%.
● The patented diagonal pull flter has a larger fltering area and is ergonomically convenient for extraction.
● The service life of the flter is CCM, far exceeding the nationa nighest standard P4 level.
● F9 level medium effciencyflter ensures efhcient operation of the total heat exchanger.
● The developed area is greater than 6 square meters.
● Long term antibacterial technology with primary flter.

PLASMA

STERILIZATION AND DISINFECTION TECHNOLOGY

The patented ion sterilization and disinfection technolo-gy alternately generates tens of millions of non equilibri-um positive and negative ions per second, colliding with pollutants in the air and rapidly decomposing into Co2 and H20.
- SPl non equilibrium positive and negative plasma meets and attracts planktonic bacteria and viruses in the air, causing electrolyte in the cell membrane Generate a potential difference, form a weak current, change its DNA replication ability, and thus produce a sterilization and disinfection effect,
- Medical grade sterilization effect: Staphylococcus aureus. Staphylococcus aureus, Escherichia coli, Aspergillus niger natural air bacteria, with a sterilization effect of over 99% within 60 minutes, and a virus removal rate (COVlD-19) of>99.99%.
TEST DATA

When SPl non equilibrium positive and negative plasma in a weakly oxidized state encounters and collides with odor molecules and odor molecules, the transport capacity of these molecules can accelerate their decomposition and oxidation, thereby purifying the odor and odor in the space. This can signifcantly reduce people's perception of odor, including durian, toilet odor, shoe odor, and decoration odor

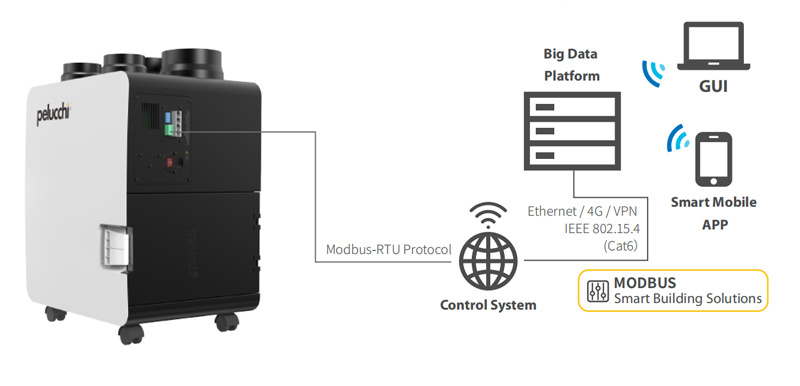

INTELLIGENT CONTROL

MASTER CONTROL SYSTEM
APP CONTROL
- APP Remote Control
- Year, month, and day reports with comprehensive data
- Home Weather Information Service
- Big Data Calculates Filter Life
- Sharing Control Functions
- WeChat shares data browsing
- Controlling the Scene Link
- Large-screen display, batch control
- Filters are easy to buy
Wall Control Switches
- It adopts TFT mobile phone color screen, exquisite display.
- Supports standard mounting of Type 86 wallboxes.
- APP remote control, email-level encryption technology, three-level management authority for secure data connection.
- It is convenient to wear pipes and wiring, wall and host control switch, only 1 standard network cable is needed to overcome the traditional button design, and 6 buttons are easy to operate.
- It is convenient to wear pipes and wiring, wall and host control switch, only 1 standard network cable is needed to overcome the traditional button design, and 6 buttons are easy to operate.
- Four-speed variable frequency speed adjustment, independent control of two fan speed adjustment
- Auto Mode, Night Mode, Sterilization Mode, Mobile Phone Mode, One-Key Quick Switching.
- Precision body design, the thickest part is only 19.3mm after installation.
- Automatic network calibration of the watch.
- Duration of the second-level filter.
- Power management system, real-time control of power consumption.
- Multi-point layout sensor within the host for precise anti-condensation control.

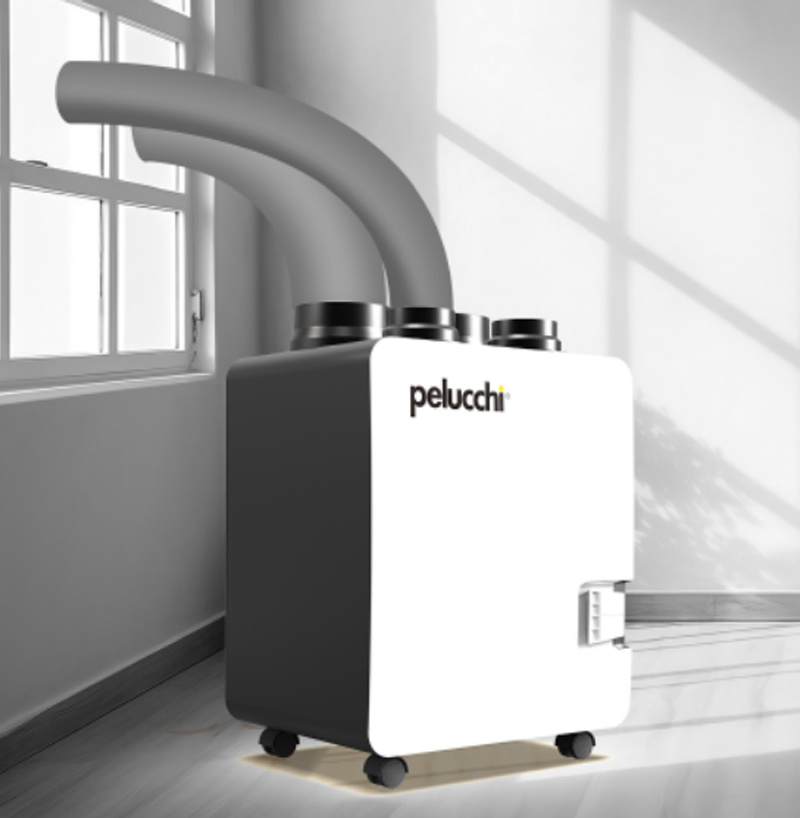

MOVABLE / INSTALLATION FREE

BAROCCO smart movable ventilation adopts multiple non opening installation methods, allowing for outdoor air intake without damaging the building structure. The installation free method comes with pulleys, making it convenient to move. change houses, and decorate as soon as you want.

MODEL	BAROCCO-350GDN-G1	BAROCCO-350GS-G1
SizeWxTxH (mm)	480×390×555	480x220x555
Package size WxT x H(mm)	600×450×730	540x280x730
Gross weight (kg)	31	25
Net weight(kg)	21	15
Power supply (V-Hz)	22O-24OVAC 50/60Hz	220-240VAC 5060HZ
Color	White top & Hack body	white top & black body
Pipe diameter (mm)	∮150(in)∮100(out)	∮150(In)
Housing material	12mm Cold rolled steel plate	1.2mm Cold rolled steel plate
Energy Consumption (V/att\|	665	630
PTC p6ver(W)	500	500
Inlet volume (m3/h)	350	350
Capacity/Room Size (m2) R8m height=23m. Air Exchange OS-1 times/hour	120-200	120-200
Suitable for number of people (adults)	8	&
Max outlet pressure(Pa)	430	430
Main fan	DC brushless motor	DC brushless motor
Return Air Fan	DC brushless motor	-
PM25 Sensor	PIantower Laser	Plantower Lasef
CO2 Sensor	Sweden Sense Air	Sweden SenseAlr
Temperature and humidity sensors	Sweden Sen sir ion	Sweden Sensinon
Installation	Ceiling	Fioor or wall mounted
Air flow	lnlet&Outlet	inlet& Outlet
One-time fiKrat ion efficiency	≥99.97%	≥99.97%
Max noise(sound pressure level}dB(A)	41	40
Minnoise(sound pressure Ievel)dB(A)	25	25
CCM Cumulate Clean Mass(mg)	>12000
HMI	86standard installation (Maximum4 supported)/APP	86 standard installatlon (Maxmum 4 supported)/APP
Modbus building renx)tecontrol	Y	Y
V/all control switch	TFT Color screen	TFT Color screen
2 hour efficiency of sterilizing odor removal	>99.99%	≥99.99%
Full heat exchange	N	N
Heat exchange efficiency winterconditions	NA	NA
Warranty	lyear (8 years for motor)	lyear (8 years for motor)
Made in	China	China
